Tidland的窄幅卷材用轴专为满足窄幅卷材轮转加工设备的需求而打造。经济实惠，广泛适用于印刷机——悬臂、插入、法兰和条杆等安装方式可供选择。
Tidland 800 GH规格
| 卷材宽度 | 7至24 in178至610 mm |
|---|---|
| 卷芯尺寸 | 3 in76.2 mm |
| 最大辊筒重量 | 750 lb340 kg |
| 速度 | 244 mpm244 mpm |
| 安装选项 | 仅悬臂杆安装仅悬臂杆安装 |
Tidland定心叶片式胀键轴规格
| 卷材宽度 | 7至24 in178至610 mm |
|---|---|
| 卷芯尺寸 | 3 in76.2 mm |
| 最大辊筒重量 | 750 lb340 kg |
| 运行速度 | 366 mpm366 mpm |
| 安装选项 | 悬臂式、法兰螺栓安装、插入式悬臂式、法兰螺栓安装、插入式 |

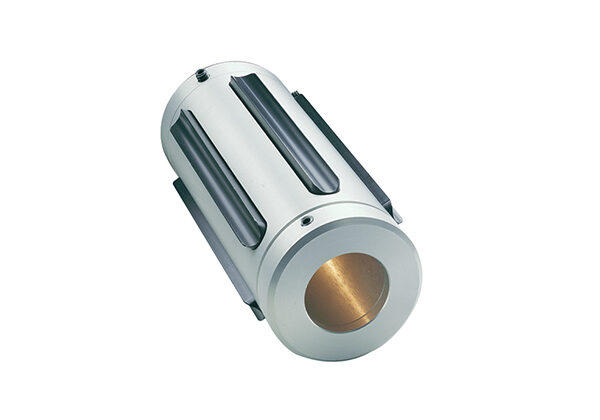

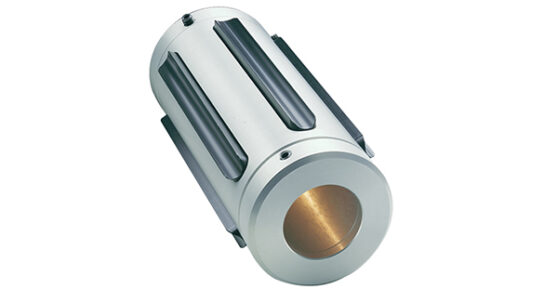

Tidland自动胀键卡盘规格
| 卷材宽度 | 2至12 in51至305 mm |
|---|---|
| 卷芯尺寸 | 3 in76.2 mm |
| 最大辊筒重量 | 602 lb273 kg |
| 运行速度 | 244 mpm244 mpm |
| 标准辊径 | 1 in、1.25 in、1.5 in25.4 mm、31.75 mm、38.1 mm |
