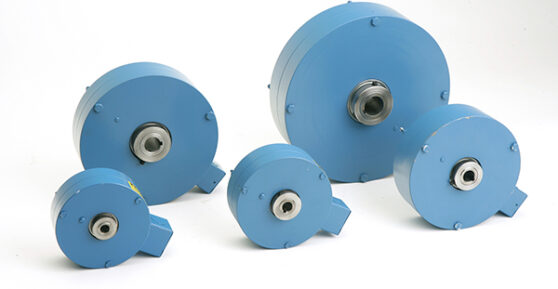

美博(MAGPOWR)的Global系列磁粉制动器具备通用性和灵活性的优点,因为这款制动器扭矩平稳可控,具备可重复性且不依赖转速,适用于所有类型的动力传输和张力应用场合。提供从5.5到325磅-英尺扭矩的相应尺寸。
此系列制动器采用了先进的磁粉技术,机加工外壳上采用通孔设计,因此尺寸紧凑,安装简单。采用M(公制)系列零件,如公制的孔、键槽、安装硬件和紧定螺钉,符合国际设计要求。此系列制动器还提供24伏直流电压或90伏直流电压版本。
额定扭矩对应的型号:
- GBA:5 Nm (5.5 lb-ft)
- GBB:14 Nm (11 lb-ft)
- GBC:35 Nm (26 lb-ft)
- GBD:75 Nm (56 lb-ft)
- GBE:135 Nm (100 lb-ft)
- GBF:441 Nm (325 lb-ft)
Global系列制动器
额定扭矩 | 5.5 - 325 lb-ft7.5 - 441 Nm |
---|---|
线圈数据(90伏直流电压) | 0.16 额定电流 361 Ω,68˚ F时0.16 额定电流 361 Ω,20˚ C时 |
线圈数据(24伏直流电压) | 0.67 额定电流 20.8 Ω,68˚ F时0.67 额定电流 20.8 Ω,20˚ C时 |
认证 | CE ULCE UL |
- 包装
- 吊牌标签
- 无纺布
- 特种轮转加工
- 电池
- 纸板
- 药品类包装
- 软包装
- 面巾和纸巾
- 食品和饮料包装
