Componex Shaft Options

Benefits of Componex Shafts:

Run up to 7.5 times faster with patented roller technology
Chrome-plated solid or tubular 1045 steel, 303 stainless, or aluminum shaft options
Stub-shaft design reduces weight, whip, and installation complexity
Hard chrome plating for scratch, gouge, and corrosion resistance
Tubular construction lowers weight with minimal deflection impact
Ships quickly – most configurations in just 5 days

Componex Thru-Shafts Overview

Componex Thru-Shaft options are engineered to optimize your dead-shaft idler performance. With a choice of solid or tubular designs, these shafts balance durability, weight savings, and corrosion resistance.

Stub shafts are ideal when space is tight or weight matters. By replacing a full-length through-shaft with a short, rigidly mounted stub shaft, you gain clearance, cut handling weight, and boost critical-speed performance. On long rollers that use smaller-diameter bearings, stub shafts eliminate the resonant “shaft whip” that can occur with a through-shaft.

Engineered Design & Key Benefits

Componex Shafts are designed for long-term reliability in all your web-handling applications.

Hard chrome plating resists scratches, divets, rust, and corrosion for years of reliable service
Weight-saving tubular design reduces mass while still allowing for tapped or turned-down ends
Stub-shaft option simplifies installation, reduces weight, and eliminates shaft whip on longer rolls
Multiple materials, steel, stainless, or aluminum, to meet application-specific needs
Reliable performance even under high speeds, tension, and thermal expansion conditions

Common Applications

Converting and laminating lines
Flexible packaging and film production
Printing and coating operations
High-speed web handling where weight and balance matter

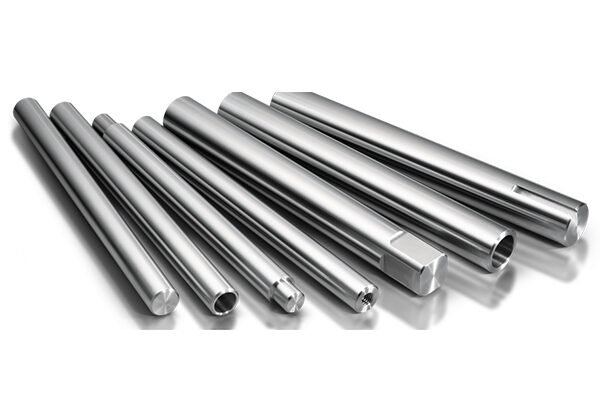

Configuration Options

Shaft Materials:

Solid hard-chrome-plated 1045 steel
Tubular hard-chrome plated 1045 steel
Solid T303 stainless steel for corrosion resistance
Solid Extruded Aluminum 6005

Custom Machining:

Chamfered ends
Tapped ends
Counterbores
Keyways
Flats
Side holds
Ring clip grooves
Turned-down ends

Request a Quote

Contact Maxcess to speak with a WINertiaTMIdler roll specialist or use the WINertia Deflection Calculator to configure your roll and submit for a quote.

Solid 1045 Hard Chrome Plated G&P

Shaft Size	Actual Size	Weight
0.75 in	0.7495 / 0.7485	0.125 lbs/in
1.0 in	0.9995 / 0.9985	0.223 lbs/in
1.25 in	1.2495 / 1.2485	0.348 lbs/in
1.5 in	1.4995 / 1.4985	0.500 lbs/in
2.0 in	1.9995 / 1.9985	0.890 lbs/in
25 mm	0.9838 / 0.9828	0.215 lbs/in
40 mm	1.5743 / 1.5733	0.552 lbs/in

Tubular Wall Hard Chrome Plated G&P

Shaft Size	Actual Size	Weight
1.0 in x 0.125 in	0.9995 / 0.9985	0.098 lbs/in
1.25 in x 0.125 in	1.2495 / 1.2485	0.125 lbs/in
1.5 in x 0.25 in	1.4995 / 1.4985	0.281 lbs/in
2.0 in x 0.25 in	1.9995 / 1.9985	0.389 lbs/in

Solid T303 Stainless Steel G&P

Shaft Size	Actual Size	Weight
0.75 in	0.7495 / 0.7485	0.127 lbs/in
1.0 in	0.9995 / 0.9985	0.223 lbs/in
1.5 in	1.4995 / 1.4985	0.500 lbs/in

Aluminum Extrusion

Shaft Size	Actual Size	Weight
1.0 in	0.998 / 0.994	0.072 lbs/in
25 mm	0.9835 / 0.9790	0.071 lbs/in

Product Sheets

Shaft Options Product Sheet
