DSE-22

  • Insensitive to ambient light
  • Insensitive to electrostatic discharge
  • Temperature stabilized
  • Low power consumption
  • Can be used for new guiding systems as well as for an upgrade of existing systems
  • Fast, easy and robust mounting due to multiple mounting brackets and sensor positioners
  • Can be connected to all available Fife web guide processors
  • OPTION: Available with Air Sweep connection, to keep the sensor field of view clean in dusty environments
  • OPTION: IP65 version
  • OPTION: 4” gap available
Industries
  • Battery
  • Cardboard
  • Flexible Packaging
  • Food and Beverage
  • Nonwovens
  • Packaging
  • Pharmaceutical
  • Specialty Converting
  • Tag and Label
  • Towel and Tissue
Contact a rep

Because of its compact size and insensitivity to ambient light, the digital infrared sensor DSE - 22 is the ideal solution for many applications where accurate web guiding is required.

The DSE - 22 Infrared Sensor measures the lateral position of the guided material photo electrically. The control range (proportional band) allows significant guide point adjustment. The DSE - 22 is often used in pairs for centre guiding when web width variations are limited. Its excellent technical specifications allow it to also be used with a Fife processor to guide clear film. Normally the DSE - 22 is used for guiding opaque materials.

It is possible to operate the DSE - 22 with either a supply voltage of 12 V or 24 V. The output signal would automatically be switched over in that case. In 12 V supply mode the sensor provides an output signal from 0 to 10 mA and can be connected to all available Fife web guide processors. In 24 V supply mode the sensor supplies an output signal between 4 and 20 mA and can be easily connected to a PLC as well.

The DSE - 22 has a built-in LED display, visible from both sides, and shows directly on the sensor information about the operating status like for instance the existence of the supply voltage, position of the edge of the web inside the field of view or error messages.

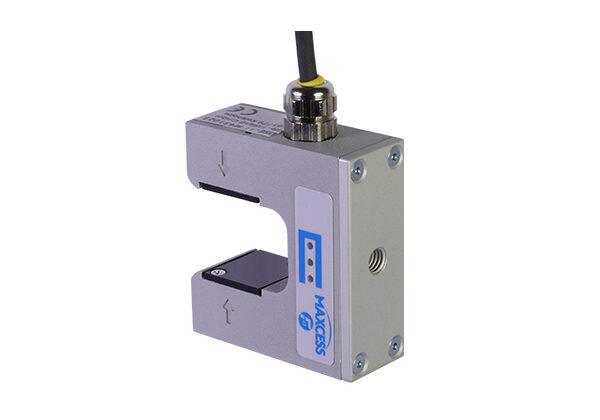

DSE-11 Digital Infrared Sensor

Gap
0.984 in25 mm
Proportional Band
0.394 in10 mm
Resolution
5.906e-6 in0.00015 mm
Protection Class
IP65IP65
Output Signal

0 to 10 (4 - 20 mA optional digital data exchange RS-485)

DSE-22 Digital Infrared Sensor

Gap
1.969 - 3.937 in50 - 100 mm
Proportional Band
0.787 in20 mm
Resolution
1.22e-5 in0.00031 mm
Protection Class
IP54, optional IP65IP54, optional IP65
Digital Output

0 - 10 mA (4 - 20 mA optional digital data exchange RS-485)
