RD AutoScore
Changeovers measured in seconds vs minutes through fully automated score depth and trim width control

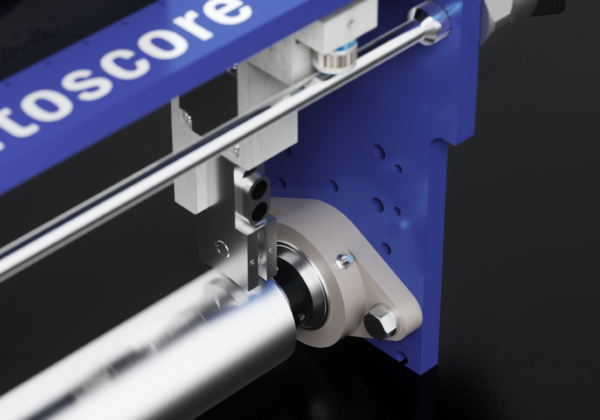

Removable blade holder allows for faster blade changes
Keep operators safer by limiting work inside the knife zone
Run faster line speeds while reducing waste and scrap through repeatability
Job and material library and job queue to easily store and recall prior jobs and materials
Typical return on investment in less than one year
Keep operators safe and reduce setup time with the Tidland RD AutoScore system. RD AutoScore is the next generation of automation for tag and label and specialty material converting. Easily score all liner materials, including PET, enabling you to run faster with less setup time. RD AutoScore offers automatic and repeatable positioning and cut-depth tuning of score blades, eliminating blade damage during setup and providing a safe, easy to use scoring system. RD AutoScore delivers a return on investment in less than 1 year as compared to manual score systems.
RD AutoScore
| Maximum Trim Width | 0.793 in20.1mm Nominal web width |
|---|---|
| Minimum Trim Width | 1.5 in38.1 mm |
| Maximum Web Speed | 500 ft/min152 m/min |
| Throw-off Distance (blade to anvil gap) | 0.081 in2.1 mm |
| Web Alignment | Anywhere within trim area |
| Score Blade Diameter | 1.25 in31.75 mm |
| Input Air | 5.5 to 8.3 bar80 to 120 psi |
| Input Power | 110-230V AC, 1ph |

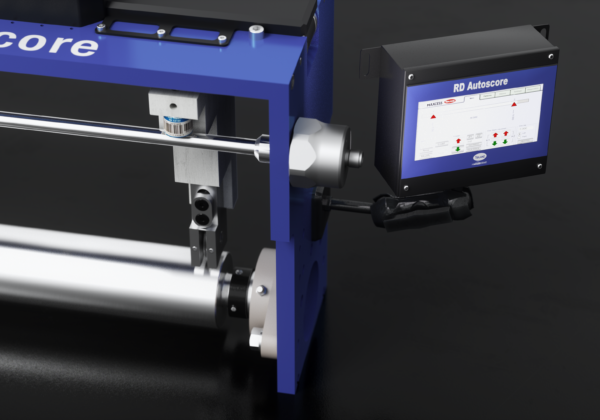

| Operator Interface | 7" color touchscreen |
| Certifications | CE |
