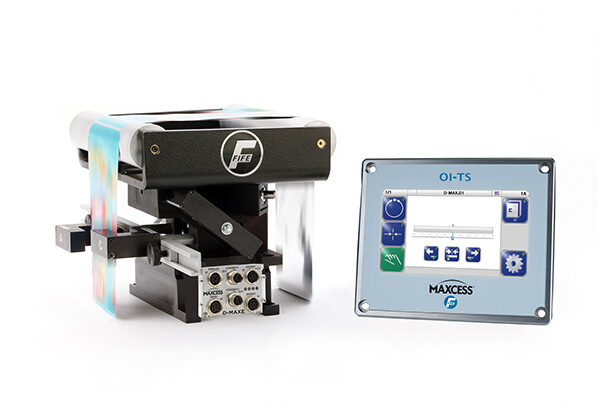

D-MAX Enhanced Web Guiding Controller

Three guides, one controller, zero downtime

The most powerful controller in the industry for increased throughput

Reduce downtime with powerful networking protocols

Industries
  • Battery
  • Corrugated
  • Flexible Packaging
  • Food and Beverage
  • Nonwovens
  • Packaging
  • Pharmaceutical
  • Specialty Converting
  • Tag and Label
  • Towel and Tissue
Contact a rep

The D-MAX Enhanced Web Guide Controller is a groundbreaking update to the original D-MAX, an industry-leading controller. With the ability to control up to three web guides at once, the D-MAX Enhanced is an OEM-friendly option that features advanced networking capabilities.

D-MAX Enhanced Web Guiding Controller

Operating Temperature
32º F - 140º F0˚ C - 60˚ C
Communication

Ethernet/IP, Ethernet, Modbus TCP and Profinet

Weight
2.2 lbs1.0 kg
Protection Class
IP54IP54
Mounting Options

Integrated or Remote Mount

Control

50W max input, Drive: 200W
max input at +24 VDC or
400W max input at +48 VDC

Drives per Controller

1 (single), 2 (dual) or 3 (triple)

Max Motor Output per Drive
4A4A
Sensor Inputs (Total)
44
Parallel Port Connectivity

Discrete 6 Inputs, 2 Outputs,
Line Speed and Remote Guide
Point Controller

OI-TS

Wall Mount Dimensions
5.04 x 4.134 x 1.496 in128 x 105 x 38 mm
Panel Mount Dimensions
5.04 x 4.134 x 1.30 in128 x 105 x 33 mm
Weight
1.32 lbs600 g
Protection Class

IP64

Display
4.3 in TFT touch-screen display, 480 x 272 px10.92 cm TFT touch-screen display, 480 x 272 px
